Advanced Polarized Light Microscopy
General Description

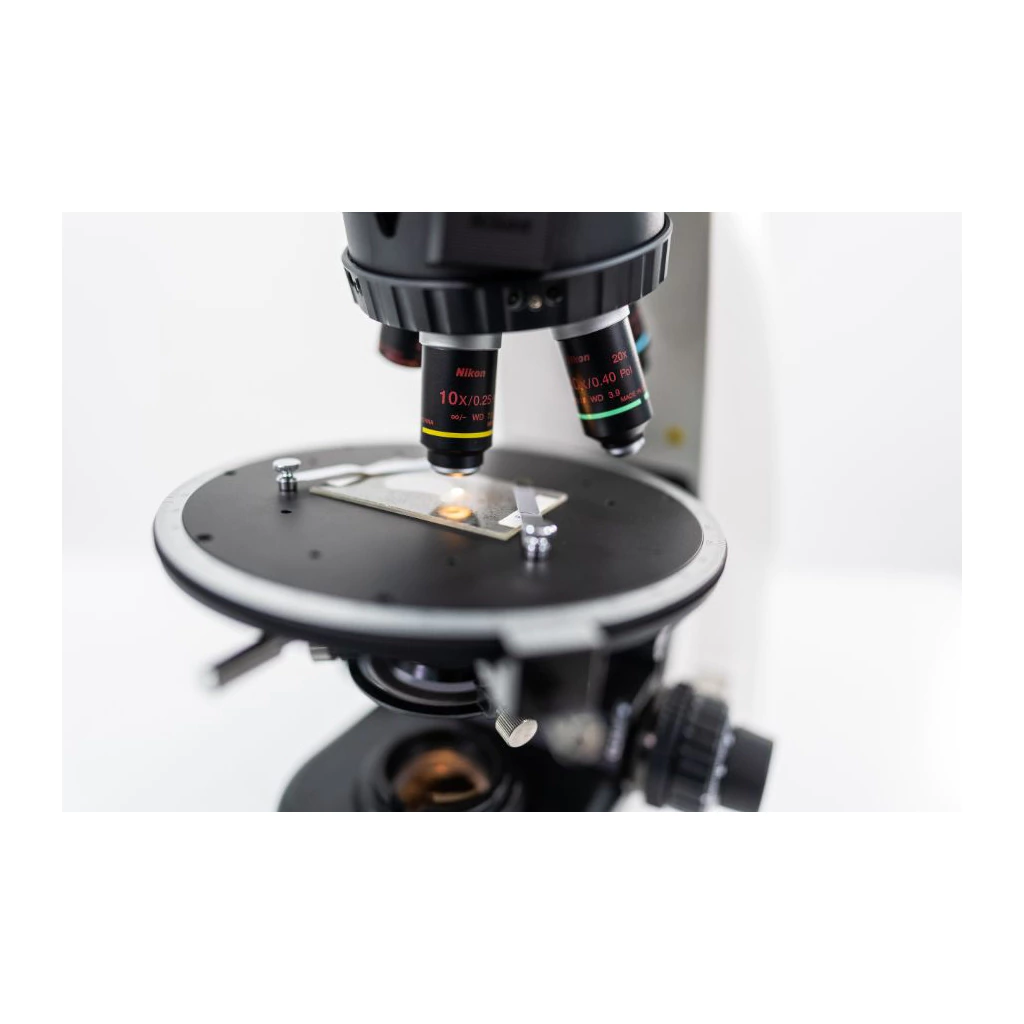

Nikon Eclipse polarizing microscopes are renowned for their ability to produce images with intense brightness, superior clarity, and high contrast. The LV100N POL model, available with diascopic and episcopic illumination, follows this tradition and offers a redesigned base for even easier operation. It features a unique high-intensity halogen light source, which delivers brighter images, lower power consumption, and less heat generation, reducing the chance of focus drift caused by induced heat.
Applications
- Composites
- Fabrics/Textiles
- Plastic Manufacturing
- Cell Phones
- Watches
- Telescope Optics
- Antennas
- Telecommunications and Electronics
Specifications
| Model |
ECLIPSE LV100N POL |
| Optical System |
CFI60 infinite |
| Lighting |
Halogen lamp 12V-50W; DC transformer 12V-50W; Diascopic/Episcopic lighting switch; Fly-eye lens; NCB11 and ND8 filters; 12V-100W optional |
| Focus |
Coarse/Fine Adjustment; Focus Travel: 30mm; Coarse: 14mm per rotation; Fine: 0.1mm; Minimum Reading: 1μm Increments |
| Eyepiece |
10x (22mm field of view), CM type with micrometer scale |
| Eyepiece Tube |
Trinocular or binocular |
| Revolver |
Centralizable quintuple |
| Polarizer |
Fixed to the base of the condenser support; scale |
| Lenses (configurable) |
CFI P achromatic 4x, 10x, 20x, 40x, 100x; CFI TU flat fluorescent Epi P 5x, 10x, 20x, 50x, 100x |
| Weight |
Approximately 17 kg (normal trinocular set) |
